Silicone Tapes
66N 67N 69N 78N 79N Equivalent Silicone Rubber Electrical Insulation Tape
Temperature Range: -54°C to +260°C / -65°F to +500°F
FlameShieldä 66N, 67N, 69N, 78N, 79N equivalent silicone rubber tapes meet MIL and commercial specifications and are used for a variety of critical electrical wiring and cable splicing and protection jobs. Especially suited for aviation and marine environments, as well as outdoor weathering environments.
66N, 67N, 69N, 78N, 79N equivalent tape has no adhesive, but sticks to itself (self-fuses or self amalgamating) when stretched and wrapped onto itself. The tapes starts curing within minutes, and after several hours cannot be unwound or removed without using a sharp knife or blade. This tape makes a waterproof, weatherproof and air tight protection.

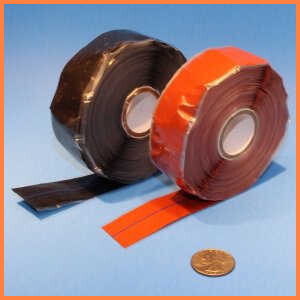

These tapes are available in red and black.
66N, 67N, 69N, 78N, 79N equivalent tape is also used to wrap hydraulic connections and to make vibration resistant bumpers and spacers for wiring, cable, hose, pipes and lines. This tape is used to wrap and hold insulation in place on hot air ducts. Makes an in-situ bushing for protecting wiring at the backshell clamp.
Meets the following specifications:
· 66N - NSN 5970-14-467-8824
· 67N - NSN 5970-14-474-7041
This tape meets 14 CFR 25.853(a) at amendment 25-116; Appendix F, Part I(a)(1)(i) (60 Second Vertical Flammability Test).
