Silicone Tapes

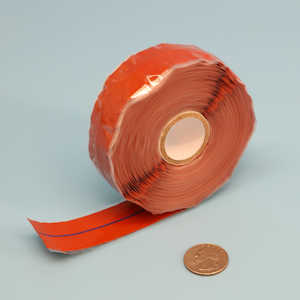

P840154-C4 Cessna Guideline Silicone Rubber Self Fusing Electrical Tape
Temperature Range: -54°C to +260°C / -65°F to +500°F
FlameShieldä P840154-C4 Cessna guideline equivalent silicone rubber electrical tape is a self-fusing self-amalgamating tape meeting MIL and commercial specifications. The tape is used to form bushings to aid in strain relief. Popular for use in avionics wiring.
The tape has no adhesive, but sticks to itself (self-fuses or self-amalgamating) when stretched and wrapped onto itself. The tapes starts curing within minutes, and after several hours cannot be unwound or removed without using a sharp knife or blade. This tape makes a waterproof, weatherproof and air tight protection.
This tape is oxide-red..
This tape is also used to wrap hydraulic connections and to make vibration resistant bumpers and spacers for wiring, cable, hose, pipes and lines. This tape is used to wrap and hold insulation in place on hot air ducts. Makes an in-situ bushing for protecting wiring at the backshell clamp.
This tape meets 14 CFR 25.853(a) at amendment 25-116; Appendix F, Part I(a)(1)(i) (60 Second Vertical Flammability Test).
