Silicone Tapes

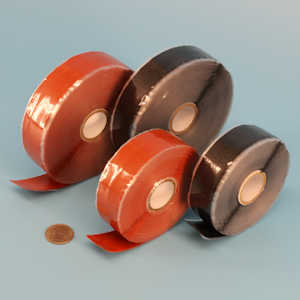

MIL-I-22444 MIL Spec Silicone Rubber Self Fusing Electrical Tape - Reinforced (Rectangular Profile Only)

Temperature Range: -54°C to +260°C / -65°F to +500°F

MIL-I-22444 silicone tapes are made with the same silicone rubber compounds as tapes meeting A-A-59163 and MIL-I-46852, but also have a fiberglass sinusoidal layer added in the middle of the tape, which provides resistance to elongation - and thereby allows for a specific amount of elongation to be added during installation. This has a number of benefits - it allows for a predictable dielectric, since the variation of elongation possible with the A-A-59163 and MIL-I-46852 tapes during installation is reduced to a known maximum amount, and it also provides some reinforcement of the tape which may be useful in some environments.

All tapes meets 14 CFR 25.853(a) at amendment 25-116; Appendix F, Part I(a)(1)(i) (60 Second Vertical Flammability Test).

Our Mil-I-22444 tapes can be fabricated to meet the following OEM specifications:

· DMS-2186 Type I

· EMD/EMS 2074

· General Dynamics P5189 & 5-00857

· General Electric A50A493-C/D & A50E112

· GE A40493

· GE A50E112 (15%)

· AE 26495-001

· ASNA 5107

· Grumman GT353V

· RMS315 Type I
