Silicone Tapes
MS70T09S NSN 5970-00-955-9976 Silicone Rubber Electrical Insulation Tape
Temperature Range: -54°C to +260°C / -65°F to +500°F

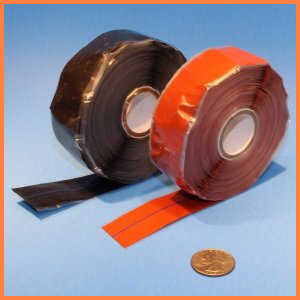

FlameShieldä MS70T09S / NSN 5970-00-955-9976 silicone rubber tape meets MIL and commercial specifications and are used for a variety of critical electrical wiring and cable splicing and protection jobs. Especially suited for aviation and marine environments, as well as outdoor weathering environments.
MS70T09S / NSN 5970-00-955-9976 tape has no adhesive, but sticks to itself (self-fuses or self amalgamating) when stretched and wrapped onto itself. The tapes starts curing within minutes, and after several hours cannot be unwound or removed without using a sharp knife or blade. This tape makes a waterproof, weatherproof and air tight protection.
This tape is black.
MS70T09S / NSN 5970-00-955-9976 tape is also used to wrap hydraulic connections and to make vibration resistant bumpers and spacers for wiring, cable, hose, pipes and lines. This tape is used to wrap and hold insulation in place on hot air ducts. Makes an in-situ bushing for protecting wiring at the backshell clamp.
This tape meets 14 CFR 25.853(a) at amendment 25-116; Appendix F, Part I(a)(1)(i) (60 Second Vertical Flammability Test).
