Silicone Tapes
All tapes meet 14 CFR 25.853(a) at amendment 25-116; Appendix F, Part I(a)(1)(i) (60 Second Vertical Flammability Test).

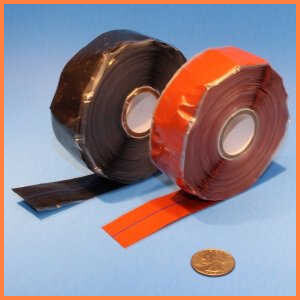

A6900W Eaton Weatherhead Equivalent Silicone Elastomer Electrical Insulating Tape
A6900W Eaton Weatherhead Equivalent Silicone Elastomer Electrical Insulating Tape
500°F / 260°C Continuous Exposure: Higher Intermittent
FlameShieldä A6900W silicone rubber self-fusing compression tapes meet many MIL and commercial specifications and are used for a variety of critical electrical wiring and cable splicing and protection jobs. Especially suited for aviation and marine environments, as well as outdoor weathering environments.
A6900W tape has no adhesive, but sticks to itself (self-fuses or self amalgamating) when stretched and wrapped onto itself. The tapes starts curing within minutes, and after several hours cannot be unwound or removed without using a sharp knife or blade. This tape makes a waterproof, weatherproof and air tight protection.
A6900W tapes may be either red or black. This tape is also used to wrap hydraulic connections and to make vibration resistant bumpers and spacers for wiring, cable, hose, pipes and lines. This tape is used to wrap and hold insulation in place on hot air ducts. Makes an in-situ bushing for protecting wiring at the back-shell clamp.
A6900W Eaton
Weatherhead Equivalent
Documents:
CofC / Test Reports
